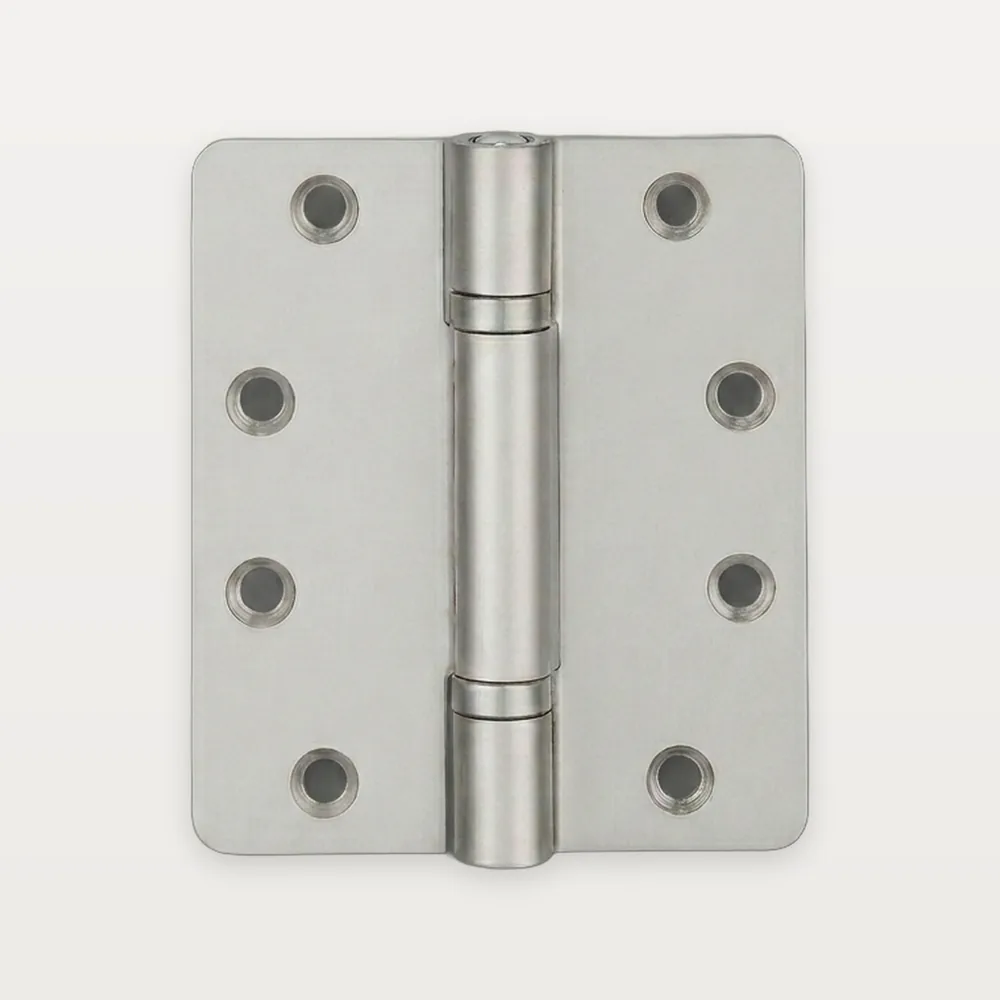

XH-A17
Stainless steel butt hinge, radius corners, plain
Stainless steel4" × 3.5"2.0–4.0 mmPlain (non-bearing)
Specifications
| Model | XH-A17 |
|---|---|
| Category | Butt hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 2.0–4.0 mm (.079–.157") |
| Knuckle diameter | 11–15 mm |
| Bearings / washers | Plain (non-bearing) |
| Corners | Radius corners |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
