XH-A46
Stainless steel double-action spring hinge
Photo shows a representative finish. Available in the finishes listed.

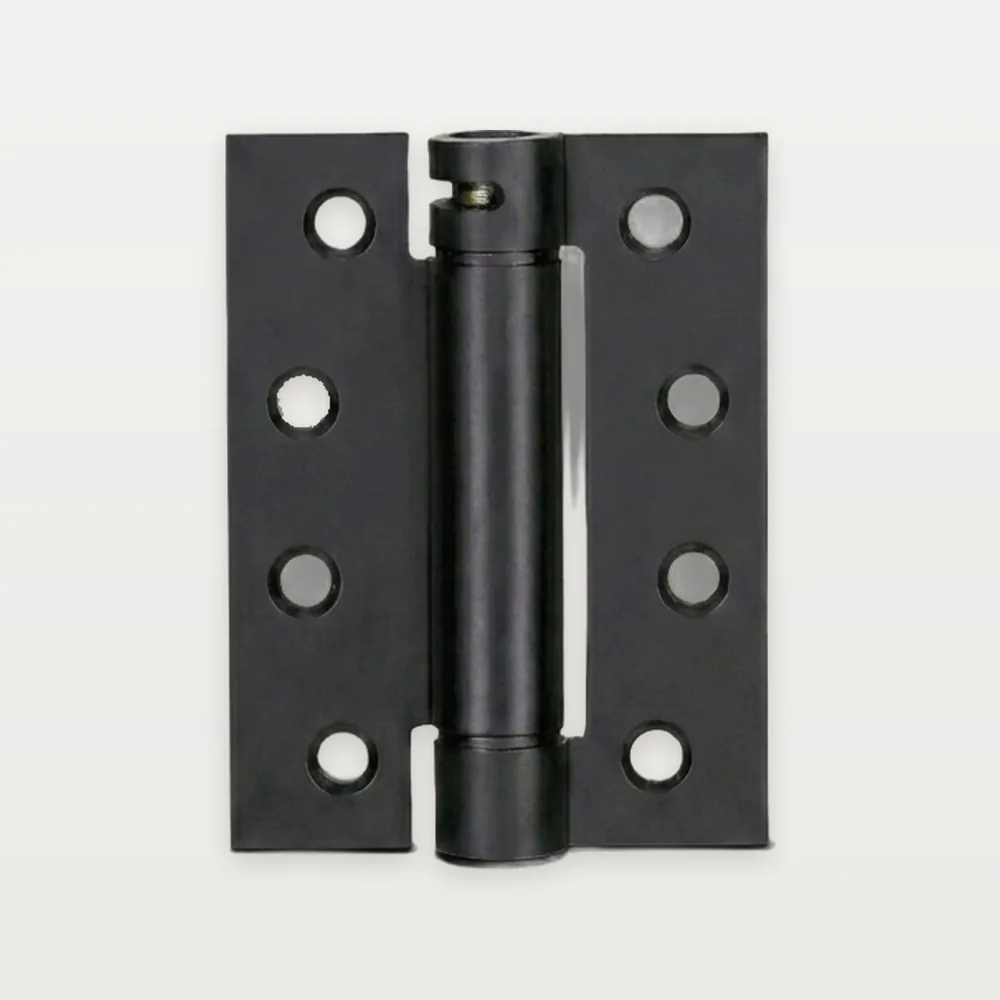

XH-A24
Stainless steel single-action spring hinge (self-closing)
Stainless steel4" × 3.5"3.0 mmSingle-action
Specifications
| Model | XH-A24 |
|---|---|
| Category | Spring hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 3.0 mm (.118") |
| Knuckle diameter | 12 mm |
| Action | Single-action (self-closing) |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
