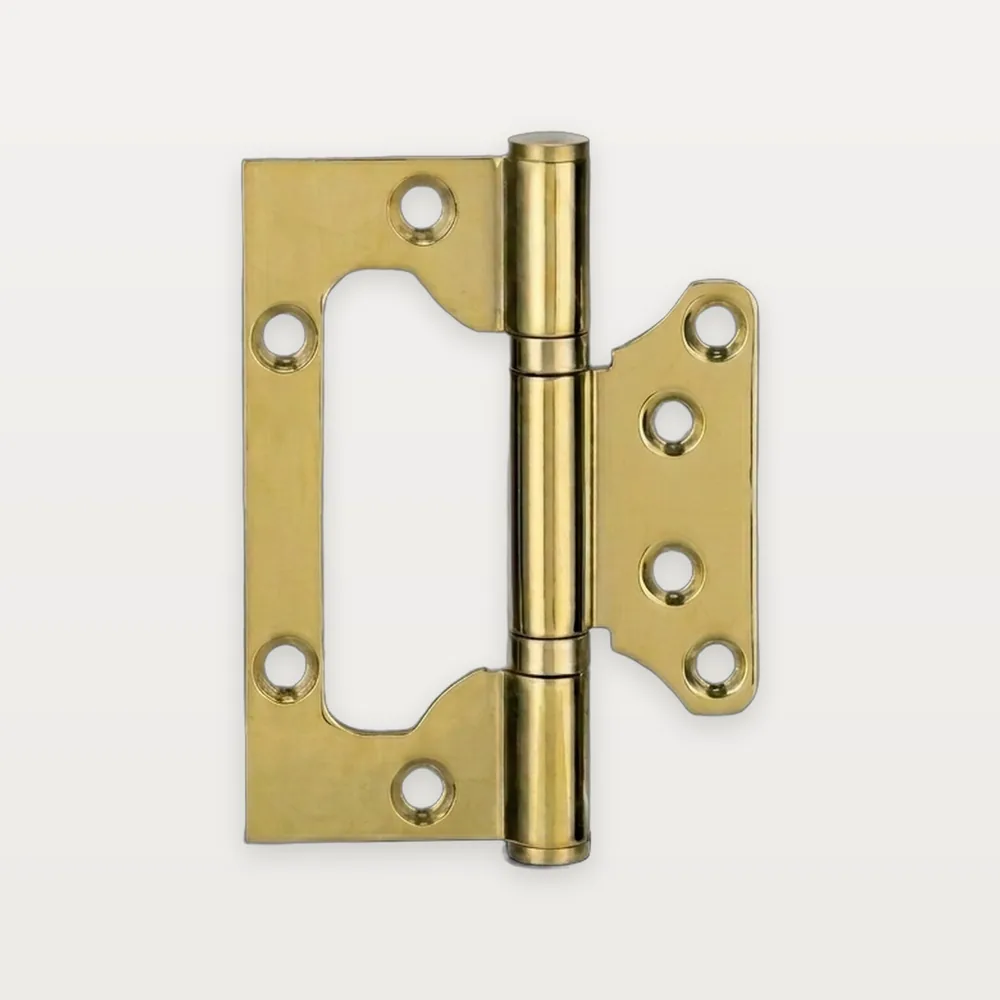

XH-A27
Stainless steel flush / mortise-free hinge
Stainless steel4" × 3"2.0–2.5 mm2 ball bearings
Specifications
| Model | XH-A27 |
|---|---|
| Category | No-mortise hinges |
| Material | Stainless steel The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote. |
| Sizes (H × W × leaf) |
|
| Leaf thickness | 2.0–2.5 mm (.079–.098") |
| Knuckle diameter | 11–12 mm |
| Bearings / washers | 2 ball bearings |
| Tips | Flat tip |
| Finishes | PN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper |
| Custom colors | Available on request |
| Pictured finish | Brass / gold |
Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
