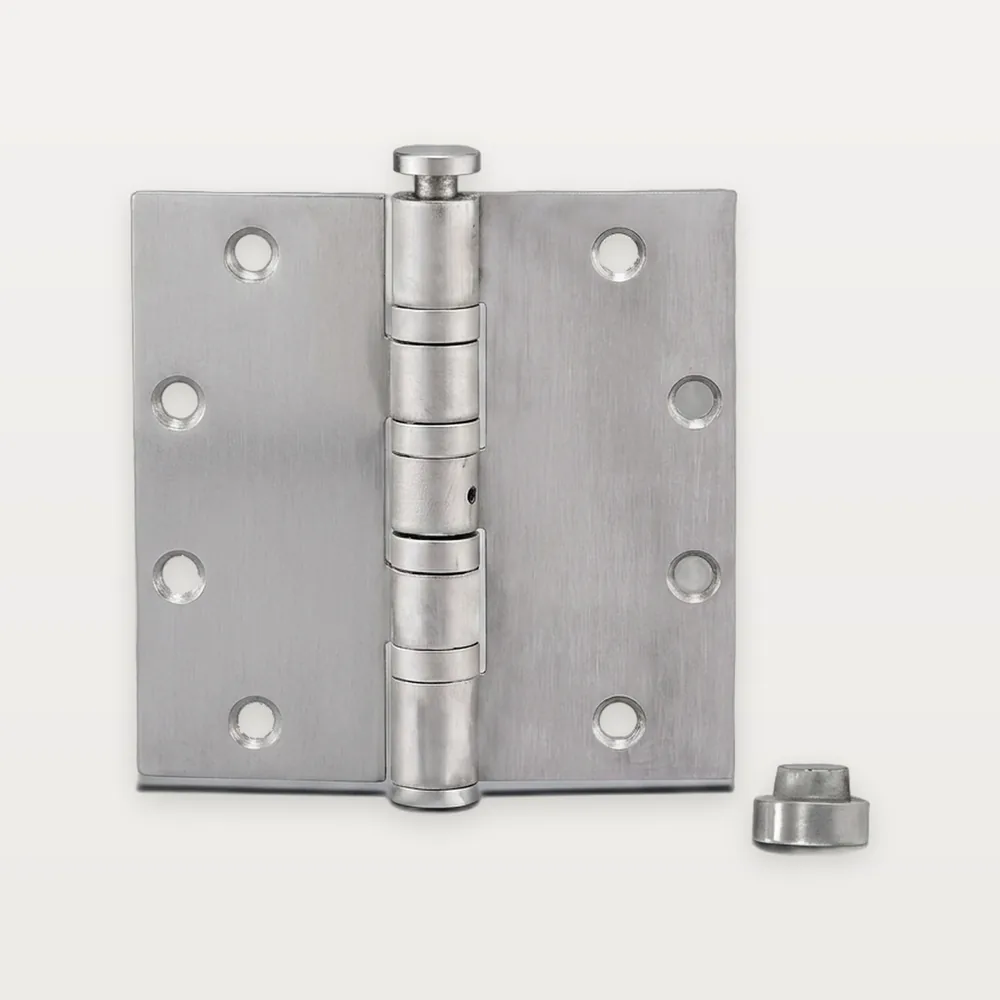

XH-A42 Stainless steel US-style butt hinge, 4 ball bearings

Photo shows a representative finish. Available in the finishes listed.

XH-A42

Stainless steel US-style butt hinge, 4 ball bearings

Stainless steel5" × 5"3.0–4.5 mm4 ball bearings

Choose a finish, or decide later.

Request a quote for XH-A42

Specifications

ModelXH-A42
CategoryButt hinges
MaterialStainless steel
The factory offers 304, 202 and 201 stainless; the grade is confirmed on your quote.
Sizes (H × W × leaf)
  • 5" × 5" × 4.5
  • 4" × 4" × 3.0
  • 4.5" × 4" × 3.0
  • 4.5" × 4.5" × 3.4
  • 5" × 4" × 3.4 mm
Leaf thickness3.0–4.5 mm (.118–.177")
Knuckle diameter18 mm
Bearings / washers4 ball bearings
FinishesPN Pearl NickelSN Satin NickelNP Nickel PlatedCP Chrome PlatedSG Sand GoldBN Black NickelSC Satin ChromeAB Antique BronzeAC Antique Copper
Custom colorsAvailable on request

Specifications come from the factory catalog. Exact dimensions, material grade, finish and packaging are confirmed in writing on your quote. Need something not listed? Tell us in your request.
